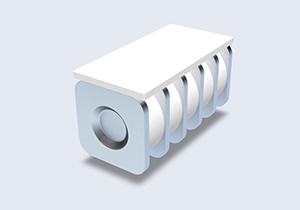

陶瓷气体放电管(GDT) > >
  Part Number DC BreakdownVo ltage(VBR)@100V/s
(V)		Tolerance of VBR(V)Impulse Spark-over
Voltage@1KV/μs
(V)		Arc Voltage (Va)@1A(V)Impulse Discharge Current@8/20μs
(kA)		Insulation Resistance
(GΩ)		@ DC
(V)		Capacitance CO 0.5VDC@1MHZ(pF)Size L*W*H(mm) 搜索

BGO1001A05-LC2 1000≥800≤2000〜605≥1100≤1.5φ8x7.0
BS401N 400280-520≤1100～80.5≥1100≤0.63.2x1.6x1.6
BC091N-H 9063-117≤650～83≥1100≤14.5x3.2x2.7
BC151N 150105-195≤750～82≥1100≤14.5x3.2x2.7
BZ401M 400360-580≤950～101≥1100≤1.03.2x2.5x2.5
BZ091N 9063-117≤700～81≥150≤0.53.2x2.5x2.5
BA151N 150105-195≤750～81≥1100≤14.5x3.2x2.7
BA201N 200140-260≤750～81≥1100≤14.5x3.2x2.7
BA301N-D 300210-390≤750～151≥1100≤14.5x3.2x2.7
BA401N-D 400340-550≤750～151≥1100≤14.5x3.2x2.7
BS201N 200140-260≤850～100.5≥1100≤0.63.2x1.6x1.6
BA601N 600420-780≤1200～151≥1100≤14.5x3.2x2.7
BD122-J 1200700-1450≤1100V(@1.2/50μs 6kV)≤6015≥1100≤1.56x6x16.5
BC201N 200140-260≤800～82≥1100≤14.5x3.2x2.7
BC301N-D 300210-390≤750～152≥1100≤14.5x3.2x2.7
BC401M 400360-560≤950～152≥1100≤14.5x3.2x2.7
BC601N 600420-780≤1200～152≥1100≤14.5x3.2x2.7
BF091M 9072-108≤650～85≥1100≤1.04.2x5.0x5.0
BF231M 230184-276≤700～85≥1100≤1.04.2x5.0x5.0
BF351M 350280-420≤750≥155≥1100≤1.04.2x5.0x5.0
BF601M 600480-720≤1200～85≥1100≤1.04.2x5.0x5.0
BF801M 800640-960≤1600～153≥1100≤1.04.2x5.0x5.0
BF102M 1000800-1200≤1800～153≥1100≤1.04.2x5.0x5.0
BF122M 1200960-1440≤2000～153≥1100≤1.04.2x5.0x5.0
BM091M 9072-108 ≤600～820≥150≤1.58.3x8.3x6
BM351M 350280-420≤650～1520≥1100≤1.58.3x8.3x6
BM471M 470376-564≤850～1520≥1100≤1.58.3x8.3x6
BM601M 600480-720≤950～1520≥1100≤1.58.3x8.3x6
BM801M 800640-960≤1200～1520≥1100≤1.58.3x8.3x6
BM362M 36002880-4320≤5500V
(@1.2/50μs 6kV)		～305≥1100≤1.58.3x8.3x6
B5G470L 470376-564≤850～155≥1100≤1φ5.5x6
B5G600L 600480-720≤950～155≥1100≤1φ5.5x6
B5G800L 800640-960≤1600～155≥1100≤1φ5.5x6
B5G3600 36002880-4680≤4700～153≥1100≤1φ5.5x6
B8G600M 600480-720≤1400～15 10≥1100 ≤1.5φ8x6
BXD3000SA03M-05 30003200~5200≥2000~1003≥1100~68.5x5.2x6.8
B8G3600L 36002880-4320≤6000V(@1.2/50μs 6kV)～155≥1100≤1.5φ8x6
B3D090L-C 9068-112≤700～85≥1100≤1.57.8x5.0x6.0
B3D230L-C 230184-276≤800～85≥1100≤1.57.8x5.0x6.0
B3D420L-C 420336-504≤950～85≥1100≤1.57.8x5.0x6.0
B3D470L-C 470360-560≤950～85≥1100≤1.57.8x5.0x6.0
BA301N 300210-390≤800～81≥1100≤14.5x3.2x2.7
B3D090M-C 9072-108≤600～1010≥1100≤1.57.8x5.0x6.0
B3Q420 420360-560≤950～202≥1100≤16.8x3.5x3.5
B3Y471M 470360-540≤1000～81≥1100≤1.56.2x3.2x2.3
BUB801M-02 600520-780≤1300~2440≥1100≤4.0Φ16x7.7
BUB801M-06 800640-960≤1400〜2440≥1100≤4.0Φ16x5.6
BD122-2 1200700-1200≤900V (@1.2/50μs 6kV)≥6020≥1100≤1.58.3x9.5x16.5
BZ201M 200160-240≤800～81≥1100≤0.53.2*2.5*2.5
BZ301M 300240-360≤850～81≥1100≤0.53.2*2.5*2.5
BX151N 150105-195≤650～103≥150≤0.64.2*3.5*3.5
BX091N 9063-117≤650～103≥150≤0.64.2*3.5*3.5
BX201N 200140-260≤750～103≥1100≤0.64.2*3.5*3.5
BX301N 300210-390≤850～103≥1100≤0.64.2*3.5*3.5
BXD3000SA03M-D 30003200~4800≤3000~1003≥1100~5008.8x6.2x8.7
BG091N 9063-117≤650〜101≥150≤0.52.9x2.1x1.9
BG201N 200140-260≤750〜101≥1100≤0.52.9x2.1x1.9
BG301N 300210-390≤850〜101≥1100≤0.52.9x2.1x1.9
BG401N 400280-520≤1000〜101≥1100≤0.52.9x2.1x1.9
BL091N 9063-117≤650〜101≥150≤0.52.9x2.1x1.9
BL151N 150105-195≤700〜101≥1100≤0.52.9x2.1x1.9
BL201N 200140-260≤750〜101≥1100≤0.52.9x2.1x1.9
BL301N 300210-390≤850〜101≥1100≤0.52.9x2.1x1.9
BL401N 400280-520≤1000〜101≥1100≤0.52.9x2.1x1.9
BZ801M 800640-960≤1400〜101≥1100≤1.03.2x2.5x2.5
BX401N-D 400370-560≤750≥183≥1100≤0.64.2x3.5x3.5
BN075M 7560-90≤600〜85≥150≤0.55.5x4.0x4.0
BN151M 600480-720≤1200〜155≥1100≤0.55.5x4.0x4.0
BN202M 20001600-2400≤3000〜153≥1100≤0.55.5x4.0x4.0
BN252M 25002000-3000≤3500〜253≥1100≤0.55.5x4.0x4.0
BN302M 30002400-3600≤4000〜253≥1100≤0.55.5x4.0x4.0
BN362M 36002880-4320≤4800〜303≥1100≤0.55.5x4.0x4.0
BN362M-1 36002880-4320≤4800〜303≥1100≤0.55.5x4.2x4.2
BF421M 420336-504≤750≥155≥1100≤1.04.2x5.0x5.0
BF471M 470376-564≤850〜155≥1100≤0.84.2x5.0x5.0
BJ091M 9072-108≤600〜105≥150≤0.55.5x5.5x5
BJ091M-1 9072-108≤600〜1010≥150≤1.05.4x5.4x5
BM152M 15001200-1800≤2500〜1510≥1100≤1.58.3x8.3x6
B3A420 470360-560≤950〜102≥1100≤1.04.2x2.7x3.9
B3D470L-1 470350-500≤950〜85≥1100≤1.57.3x5.0x5.0
BXD3000SA03M03 30002400-3600≤2500〜353≥1100≤50011.8x8.3x10.8
BGO6000A03-LB2 600≥480≤1500/3//≤1.5Φ5.5x6.0
BGO6000A10-LC2 600≥480≤1500〜4010≥1100≤1.5φ8x7.0
BGO1001A10-LC2 1000≥800≤2500〜6010≥1100≤1.5φ8x7.0
BL201NH 200140-260≤600~101≥150≤0.52.9x2.1x1.9
